High Torque Cycloidal Gear Reducer RV Gearbox For Robotics

Name: High Torque Cycloidal Gear Reducer RV Gearbox For Robotics
Brand: Giant Precision
Price: 1 USD

Wholesale High Torque Cycloidal Gear Reducer RV Gearbox For Robotics from china suppliers

Brand Name : Giant Precision

Model Number : RV - E

Certification : ISO9001

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : To Be Negotiated

Payment Terms : T/T

Supply Ability : 20000 Sets per Month

Delivery Time : 3-4 Weeks

Packaging Details : Carton Box

Product : Solid Shaft E Series RV Reducer

Material : Steel, Aluminum

Torsional Rigidity : 372 to 7448 Nm/arc.min.

Rated torque : 167 to 4410 Nm

Output Torque : 17 to 450 Nm

Lost motion : MAX. 1 Arc.min.

Rated output speed : 15 r/min

Model : BX20E, BX40E, BX80E, BX110E, BX160E, BX320E, BX320E3, BX450E

Weight : 4.7 to 66.4 kg

Color : Sliver

Design life : 6000 hours

Warranty : 1 Year

Contact Now

RV reducer

often referred to simply as an RV gear, is a type of precision gearbox that is highly valued for its high torque capacity, minimal backlash, and robustness. It is widely used in robotics, CNC machinery, and other high-precision applications.

Operation

Rotation the input shaft rotates, causing the cycloidal disc to move.
Engagement as the cycloidal disc rotates, it engages with the pins and rollers, which are arranged in a fixed position relative to the disc.
Reduction The unique motion of the cycloidal disc translates into a reduced speed and increased torque on the output shaft.

Specifications of RV-E

	Specification	Output Torque kgf-m(Nm)
	20	17(167)
	40	42(412)
	80	80(784)
	110	110(1078)
	160	160(1568)
	320	320(3136)
	450	450(4410)

Parameters table of RV - E series

Model	Torsional Rigidity	Dimension(mm)		Rated torque (T0)	Rated output speed (N0)	Torsional stiffness	Lost motion		Backlash	Allowable bending torque (Nm)	Allowable thrust load (N)	Weight (kg)
Model	Nm/arc.min.	a	b	Rated torque (T0)	Rated output speed (N0)	Nm/arc.min.	arc.min	Determining rotational speed (Nm)	Arc.min.	Allowable bending torque (Nm)	Allowable thrust load (N)	Weight (kg)
BX20E	372	20.1	113.3	167Nm	15 r/min	49	MAX1	±5.00	MAX1	882	3920	4.7
BX40E	931	29.6	143.7	412Nm		108		±12.3		1666	5194	9.3
BX80E	1176	33.4	166	784Nm		196		±23.5		2156	7840	13.1
BX110E	1470	32.2	176.6	1078Nm		294		±32.3		2940	10780	17.4
BX160E	2940	47.8	210.9	1568Nm		392		±47.0		3920	14700	26.4
BX320E BX320E3	4900	56.4	251.4	3136Nm		980		±94.0		7056	19600	44.3
BX450E	7448	69	292.7	4410Nm		1176		±132.0		8820	24500	66.4

Key Attributes of RV - E Series Solid Shaft RV Reducer
Product	Solid Shaft RV Reducer
Material	Steel, Aluminum
Standard ratio	57 to 160
Output Torque	17 to 450 Nm
Torsional Rigidity	372 to 7448 Nm/arc.min.
Rated torque	167 to 4410 Nm
Backlash	MAX. 1 Arc.min.
Momentary max. allowable torque	833 to 22050 Nm
Rated output speed	15 r/min
Model	BX20E, BX40E, BX80E, BX110E, BX160E, BX320E, BX320E3, BX450E
Weight	4.7 to 66.4kg
Design life	6000 hours
Warranty	1 year

Application

Vertical Articulated Robot Shaft Drives
SCARA, Pick & Place
Machine Head Indexer
CNC machinery

High Torque Cycloidal Gear Reducer RV Gearbox For Robotics

Product Tags:

High Torque Cycloidal gear reducer

Robotics Cycloidal gear reducer

Cycloidal rv reducer gearbox

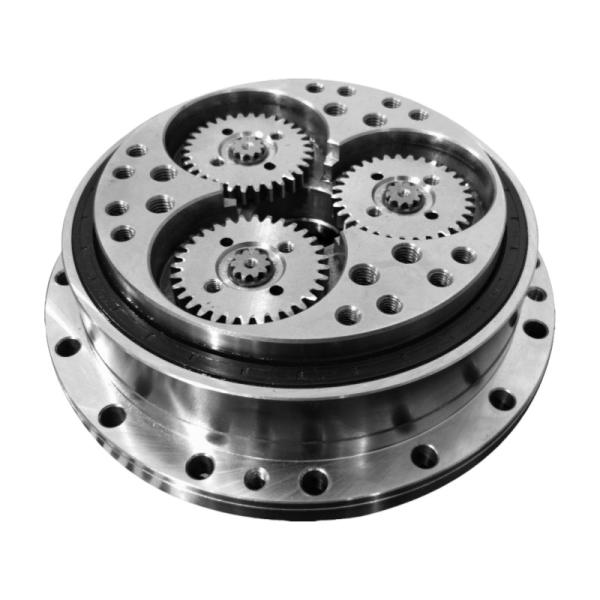

High Torque Cycloidal Gear Reducer RV Gearbox For Robotics Images
